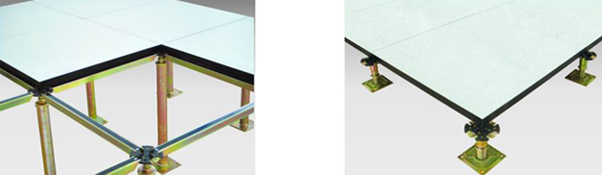

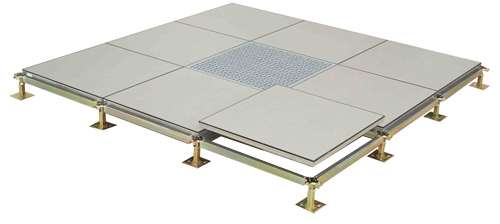

Calcium Sulphate Raised Floor Series
|
|
|
SAC Calcium Sulphate Raised Floor panel consists of high-strength calcium sulphate such as calcium cilicate or cement particle board as the center core material. There are 2 types of panels: full encapsulated panel and panel with PVC band edge.
|
Features:
- Elaborated made, high dimension accuracy and excellent interchangeability
- Good loading capacity and strong impact loading capacity
- Enviromental friendly and free of pollution
- Water-proof, fire-proof, antisepsis and sound insulation
- Good decorative effect when using anti-static HPL or Vinyl finish
- Smooth floor surface and comfortable when walking through

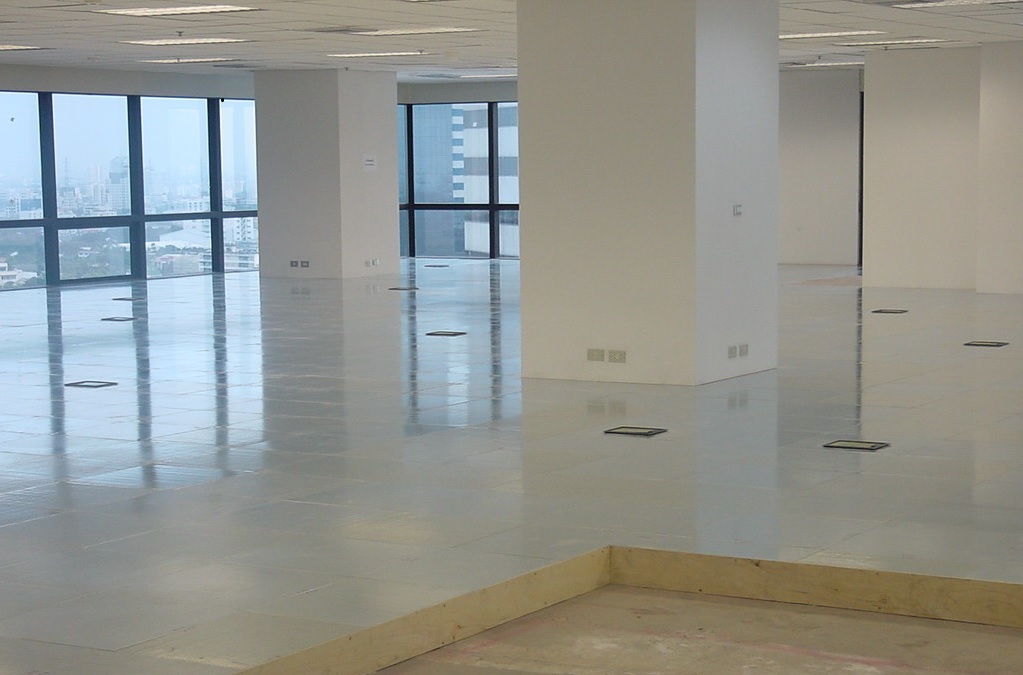

- Usage: OFFICE Tower, Data Center, telecommunication room, power station, computer lab or any other anti-static dust -proof room, etc.
|

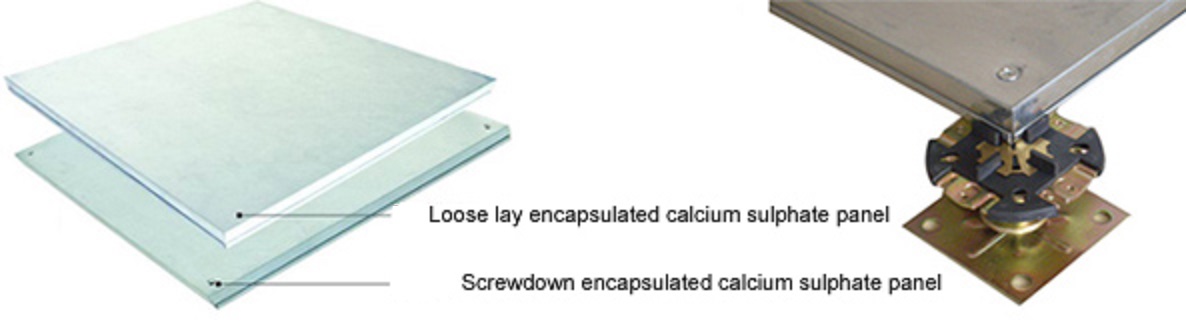

Encapsulated calcium sulphate panel
|
The encapsulated calcium sulphate panel is in full steel encasement and good sealing. Steel sheet is bonded to the top and bottom surface of the core with profiled edges. The thickness of the panel is 28mm. Both corner-lock and without corner-lock panel are available.
|
|
|
|
Calcium sulphate panel with PVC band edge
|
For the calcium sulphate panel with PVC band edge, the steel sheet is bonded to the top and bottom surface of the core and the PVC edging strip is glued to each edge of the panel.
|
|
|
| Model No. |
Concentrated Load |
Rolling Load |
Ultimate Load |
Uniform Load |
Frame Spread |
| KN |
KG |
KN |
KN |
KN/M2 |
ASTM E 84 |
| SF800 |
3.56 |
363 |
2.95 |
10.65 |
16.5 |
Class A |
| SF1000 |
4.45 |
454 |
3.56 |
13.35 |
23.00 |
| SF1250 |
5.56 |
567 |
4.45 |
16.68 |
33.00 |
| * For the system resistance of HPL anti-static panel, it is around 106-1010Ω Static dissipative |
