All Steel Raised Floor Series | |
SAC Steel Raised Floor panels are epoxy coated unitized shells consisting of a flat steel welded to a formed steel bottom sheet filled with a high controlled, mixture of lightweight cement. Manufactured to exacting tolerances, these non-combustile rigid, solid panels deliver the ultimate in strength, durability, and acoustic performance.The panels’ sizes are controlled with great precision, which assures the free interchange between panels. |
Bare Finish Raised Floor
|
|

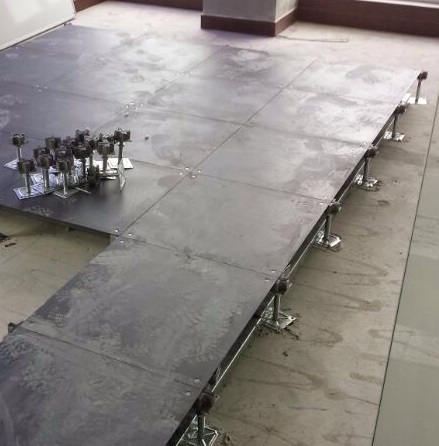

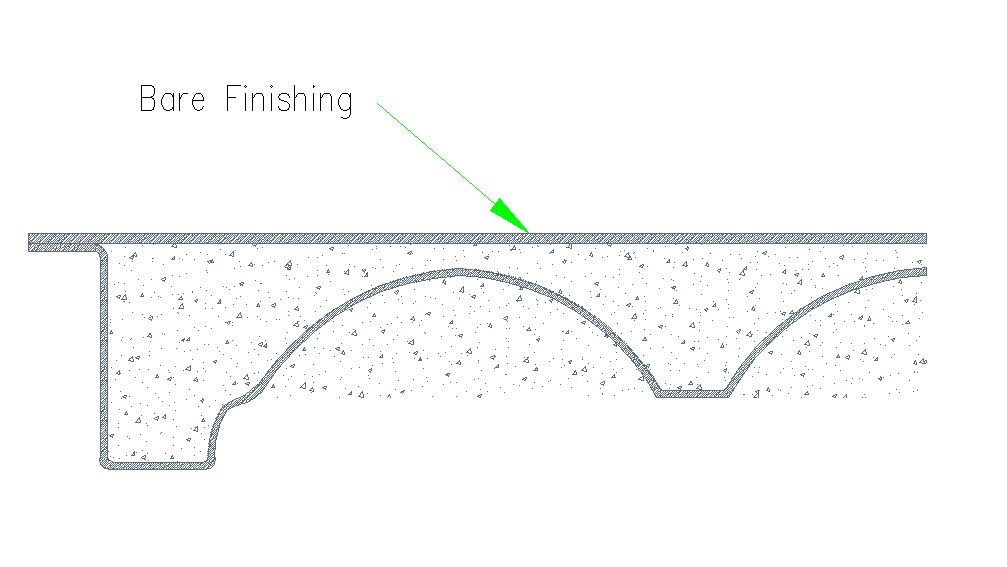

SAC Bare finish raised access floor panels is specially designed for modern office tower. It creates a more comfortable and efficient office environment. The panels can be easily installed onto the cornerlock system or stringer system. The raised floor can act in concert with approiate accessories such as floorbox to provide good cabling in the office. |
|
Features:
|
|
Main Structure:
|
|
Anti-static Raised Floor
|
|

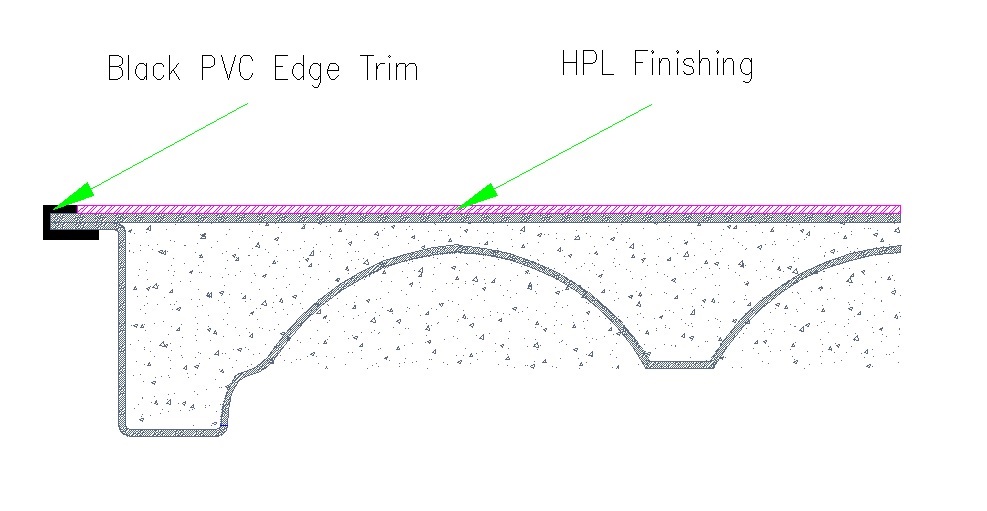

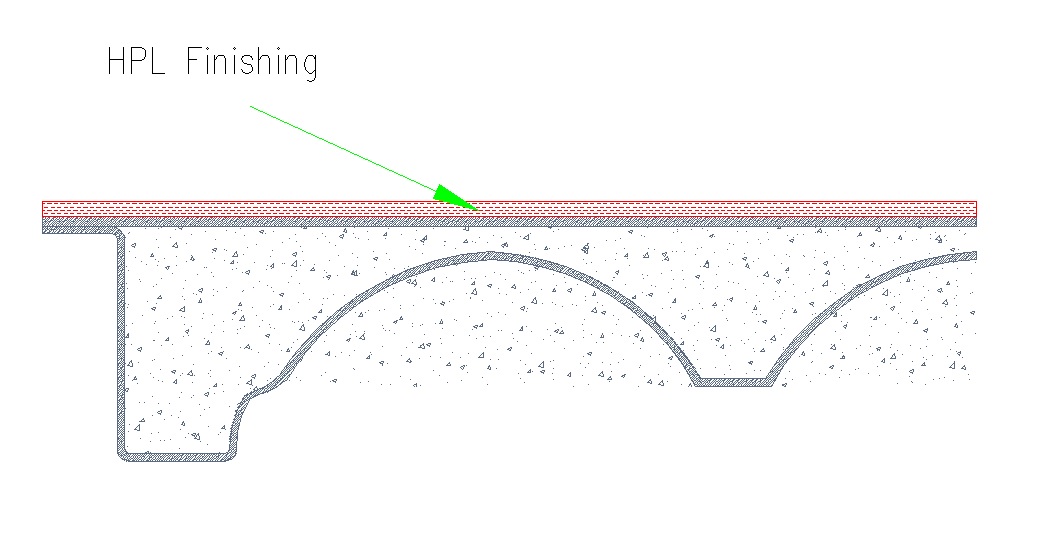

SAC anti-static raised access floor panels has excellent anti-static performance. The top steel sheet of the panel is stuck with anti-static HPL and installed with stringer and pedestal system which provide a very high stability. It can increase the lifetime of electronics, computers, servers and communication equipments by preventing static electricity occurs inside the room. The raised floor can act in concert with approiate accessories such as aluminum grommet to provide good cabling in the room. |
|
Features:
|
|
Main Structure:
|
|
PVC Vinyl Finish Raised Floor
|
|

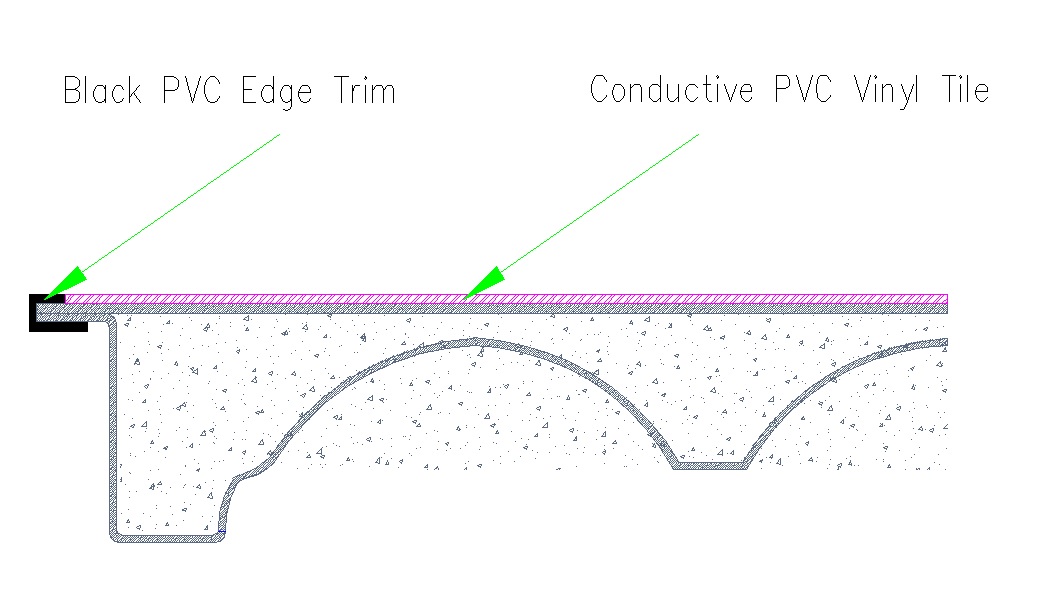

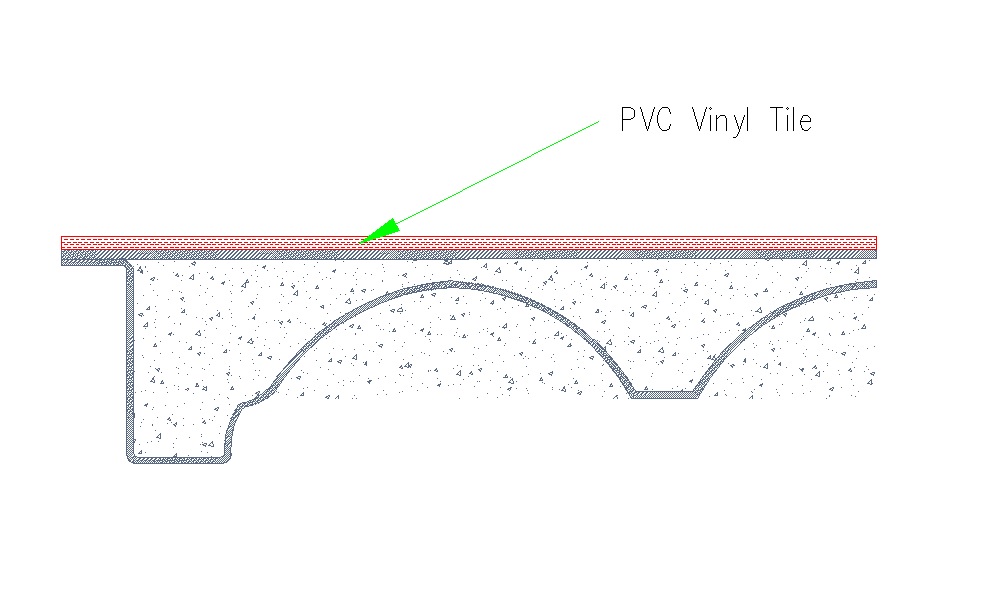

SAC PVC Vinyl Finish Raised Floor panels is similar to anti-static raised floor panels. The only difference is the top steel sheet of the panel is stuck with conductive PVC vinyl tile rather then the anti-static HPL finish. The PVC vinyl finishing provide an outstanding decorative effect when compare with HPL finishing. It is used in data centre, telecommunication center and any other places which require anti-static performance. |
|
Features:
|
|
Main Structure:
|
|
Floor Specifications: |
Model No. | Panel Size (mm) | PSA Grade | Concentrated Load | Rolling Load | Ultimated Load | Uniform Load | Frame Spread | |
KN | KG | KN | KN | KN/M2 | ASTM E 84 | |||
SF800 | 600×600×35 | Light | 3.56 | 363 | 2.95 | 10.65 | 16.5 | Class A |
SF1000 | Medium | 4.45 | 454 | 3.56 | 13.35 | 23.00 | ||
SF1250 | Heavy | 5.56 | 567 | 4.45 | 16.68 | 33.00 | ||
SF1500 | Extra heavy | 6.67 | 681 | 5.56 | 19.99 | 39.32 | ||
SF2000 | Industrial | 8.91 | 909 | 7.79 | 26.72 | 52.56 |
* 610×610 panel is available |
* For the system resistance of HPL anti-static panel, it is around 106-1010Ω Static dissipative |
