Die-cast Aluminum Raised Floor Series Raised Access Floor Products

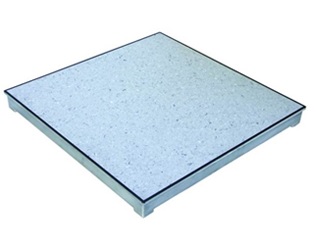

SAC Die-cast Aluminum Raised Floor panel is die-casted by pure aluminum ingot. It is anti-corrosion and high mechanical strength. This panel can be epoxy powder coated or nickel chrome plated. Both finish makes the panel gentle glow, anti-corrosion and anti-wear.

Features:
  • New design with high dimension accuracy and excellent interchangeability
  • Light weight, high density and good loading capacity
  • Water-proof, fire-proof, anti-corrison, anti-magnetic, environmental friendly and non-radiation
  • Stable structure and never deflects, good conductivity
  • Good decorative effect
  • Recyclable and economical
  • Usage: data center, High-grade room, Data Center, telecommunication room, power station, computer lab or any other anti-static dust -proof room, etc.

Raised Access Floor Products
Raised Access Floor Products
Raised Access Floor Products

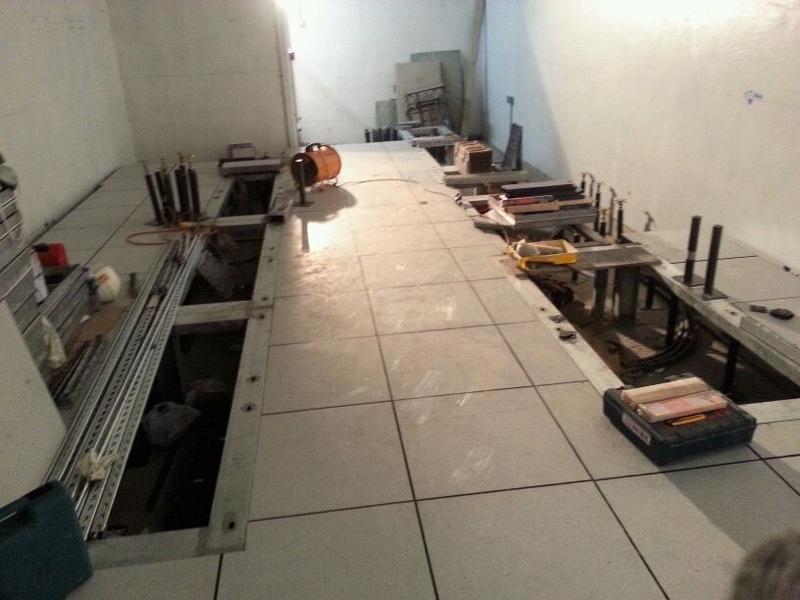

Job Reference:
Raised Access Floor Products

Floor Specifications:
Product HJS500 shield panel HJS700 shield panel HJS1000 shield panel HJS1200 shield panel
Material Aluminum die cast Aluminum die cast Aluminum die cast Aluminum die cast
Dimension 600×50 600x50 600x55 600x55
Strength 500kg/Deflection2.0mm
Concentrated load at center		 700kg/Deflection2.0mm
Concentrated load at center		 1000kg/Deflection2.0mm
Concentrated load at center		 1200kg/Deflection2.0mm
Concentrated load at center
Surface PVC tile O O O O
HPL O O O O
Surface
Treatment		 Epoxy
Coating		 O O O O
Ni-Cr plating O O O O
* For the system resistance of HPL anti-static panel, it is around 106-1010Ω Static dissipative

   SAC Raised Floor Product：
